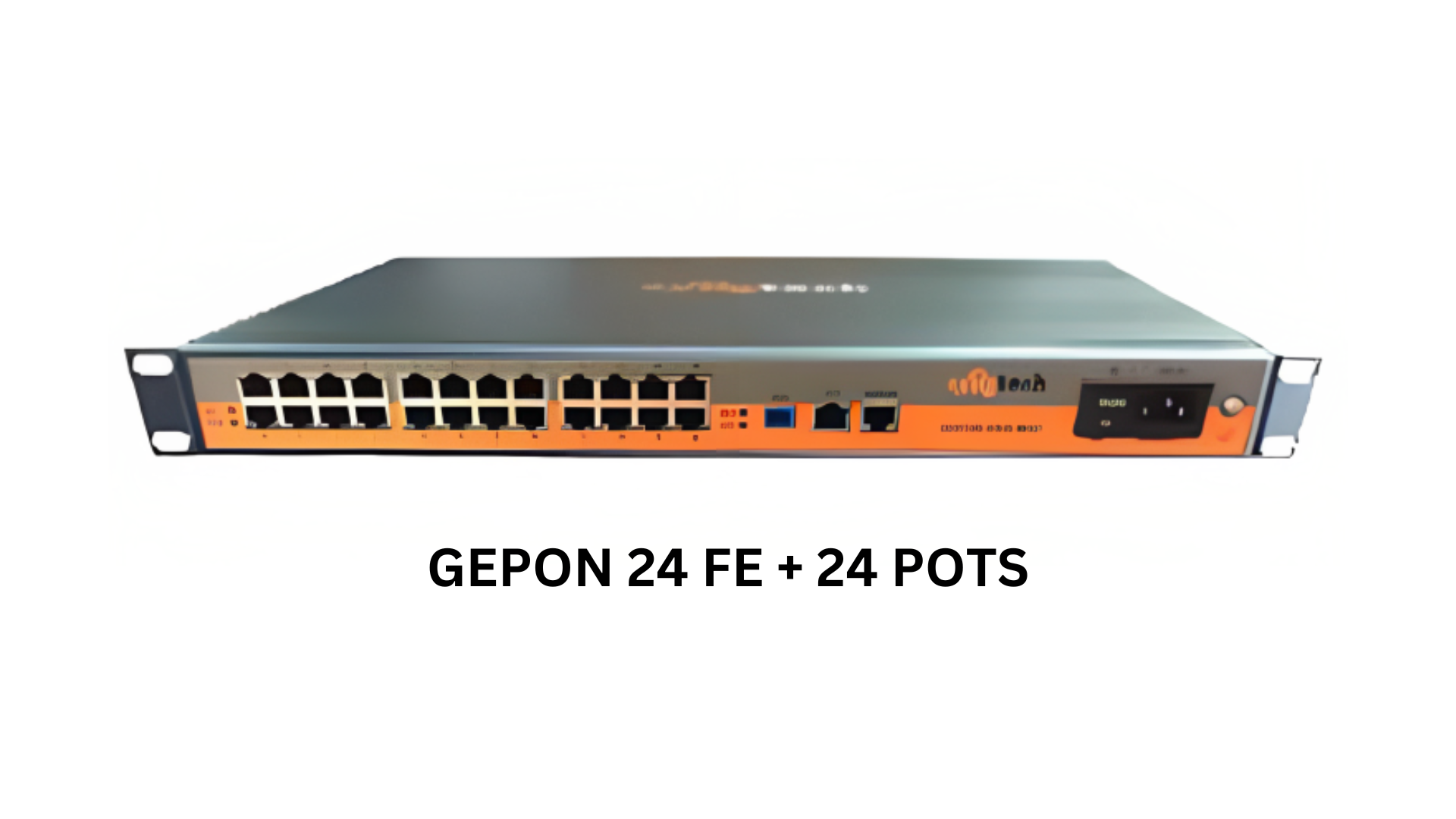

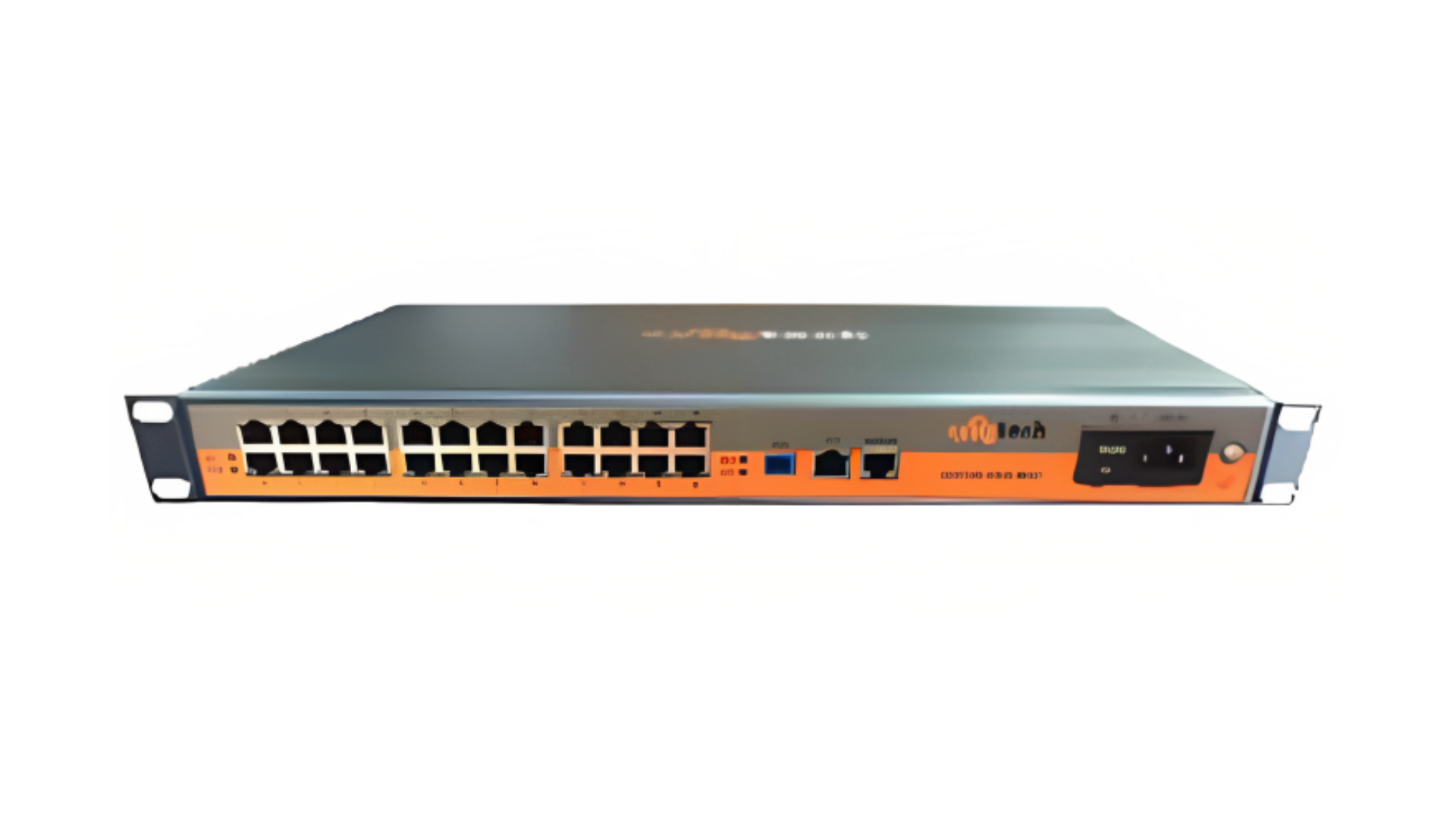

Syrotech -GEPON-MDU-24 FE -24POTS-IGMP-ITU T-IEEE 802.3ah-pppoe+ function-ACL -QOS

SYROTECH's GOPON-24X24-MDU is a multi-dwelling EPON ONU (Optical Network Unit) designed for broadband access. It is based on stable and mature Gigabit EPON technology and a Layer 3 Ethernet switch, which make it highly reliable and easy to maintain. This device is compliant with technical standards such as ITU-T, IEEE, and YDT, and it offers guaranteed Quality of Service (QoS).

The GOPON-24X24-MDU features high-performance, stable core chipsets commonly used in the telecom industry. It can be easily integrated with popular EPON OLT (Optical Line Termination) systems to provide broadband access services for enterprises or multi-dwelling units. It can also offer internet access, Voice over IP (VoIP), and Video on Demand (VOD) services for families or small businesses.

KEY FEATURES:-

◉ Adopt EPON uplink interface, compliant with IEEE802.3ah standard.

◉ Support IGMP Snooping and IGMP Proxy.

◉ Support STP/RSTP user Ethernet interface protection.

◉ Support DHCPOption82 report Ethernet interface physical location information.

◉ Support PPPoE+function, used for user precision identification.

◉ Support configuration of Ethernet interface rate, operation mode, auto-negotiation, and Pause flow control.

◉ Support IP address filter by using ACL rule, suppress unknown single-broadcast, broadcast, and multi broadcasts messages.

◉ Support Layer2 line rate forward.

◉ EPON downlink adopt-churning algorithm for data encryption.

◉ Support Ethernet line performance statistics.

◉ With strong Qos ability, support whole configuration queue priority and message 802.1p flexible mirroring; Support SP, WRR, or SP+WRR dispatch mode; Support configure dispatching queue weighing, protect the key service Qos under multi-service conditions.

Table: 1

Table 2: Syrotech MDU ( 24x24 ) Features

USE CASE:

Syrotech MDU L3 switch is a high-performance, carrier-grade switch designed for use in multi-dwelling units (MDUs). They are used in a variety of other fields as well. Mostly they are used in

• Telecommunications
• Data Centers
• Enterprise Networks

- Syrotech MDUs are widely used in FTTH and FTTN network architectures in telecom central offices (COs). Aside from providing high-density port connectivity, the switch also supports QoS, VLANs, and multicast. This makes it ideal for use in demanding network environments.

- Syrotech MDU L3 switches are gaining popularity among data centers due to their high port density. Using this, L3 switch can connect multiple servers and storage devices simultaneously.

-  Using MDU in a business network, With the help of integrated 24 POTS line cards and 24 FE line cards. The POTS line card provides businesses with the ability to offer their customers reliable and clear telephone calls. The FE line card gives the business the ability to offer their customers with high-speed internet connection with a data rate of up to 100Mbps.

Multiple Connection

These Switches have the ability to connect server farms, storage farms, and multiple access layer switches. It acts as a bridge between the upstream core layer and the downstream access layer. And It acts as a traffic aggregator for all the traffic that comes from the access layer. The main function of the switch is to provide high-speed connectivity and redundancy. when compare to cisco's capabilities, these syrotech switches provide a high density and are offered in a 1U form factor with low power consumption & cost efficiency.

UTILIZE FOR:

As a result of the development of Layer 3 switches, the following advantages can be provided to the network:

• Traffic segregation and fault isolation are improved
• Enhance security management by simplifying the process
• Traffic volume for broadcasts should be reduced
• Process for configuring VLANs is now easier than ever before
• Routing between inter-VLAN networks is supported
• Routing tables that are separate from each other
• Reduce the amount of time and effort required to troubleshoot
• Provide flow accounting and scalable high-speed operations
• Streamlining network traffic and reducing latency

OTHER FEATURES:-

INDICATOR TABLE

INTERFACE AND BUTTON:-

Robust Network ( Table 2_1): This wifi standard opens up numerous possibilities for long-range factory automation, building automation, fleet management, smart agriculture, and city infrastructure. To know more about wifi halow, visit our blog page.

Security (Table 2_2):-With this security syrotech MDU (24 x24) L3 switch can offer your business the ability to create a private and secure network. This is especially important if you are handling sensitive data or if you simply want to keep your network traffic away from prying eyes. Those features will make your network safe and secure

SFPs ( Table2_4):- According to the syrotech, GOXS-C03-02 Copper SFP transceivers are optimal for this L3 MDU witch  (24FE + 24 Pots ) model.

Assistive Technology (Table 2 _ 5):- Syrotech MDU  will also support VoIP, IPTV, and Data services over a single fiber-to-the-home (FTTH) connection. The unit will also offer an L3 function allowing it to act as a switch and router.

Port (Table 2 _ 6):- Syrotech informs that 10 GE ports and 24 FE x 24 POTS ports are available for the L3 switch. In order to increase data throughput and simplify management, the company offers this facility to its customers.

Configuration(Table 2_7):- Syrotech's MDU industrial-grade switches are designed for Ethernet applications. And it supports auto-negotiation, Pause flow control, and has an operating mode for layer L3.

Line Card( Table 2_11): Syrotech offers this MDU model as a 1-rack unit. If you need customization, please consider our technical team.

For More Information:

For more information about switches & other accessories, visit blog pages  or make contact with the technical support team (00xxx)

Warranty Information:-

Warranty information for the syrotech MDU L3 switch is available at https://syrotech.com/warranty-disclaimer/

FAQ:-

Q： All indicators are OFF when power ON?

A: 1) Ensure that the power supply is connected properly.

2) Check the power supply turn on/off button on the front panel of the equipment.

Q： Stop working after some time operation?

 A:1) Examine the power supply to determine if it is too high or too low.

2) Excessive heat ( check temperature and make sure the vent hole is open ).

Q：LOS indicator is ON?

 A:1) Fault in the fiber cable (Check the connection of the fiber cable).

2) An issue with the OLT equipment.

NOTE: grabnpay makes data only for informational purposes only. Unfortunately, we cannot provide any warranty or guarantee for the mentioned product. You can get all warranty & service leads from our customer support team.
