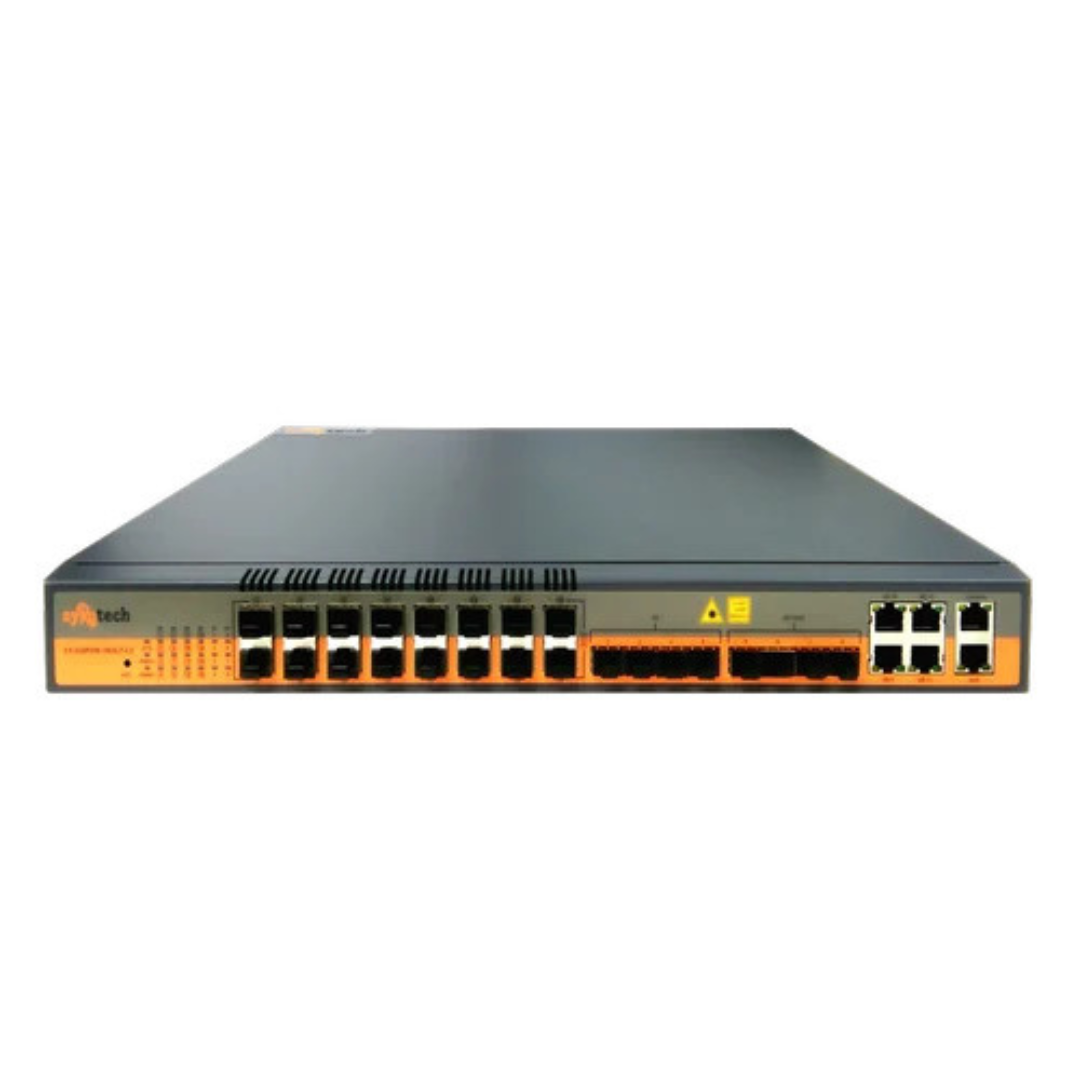

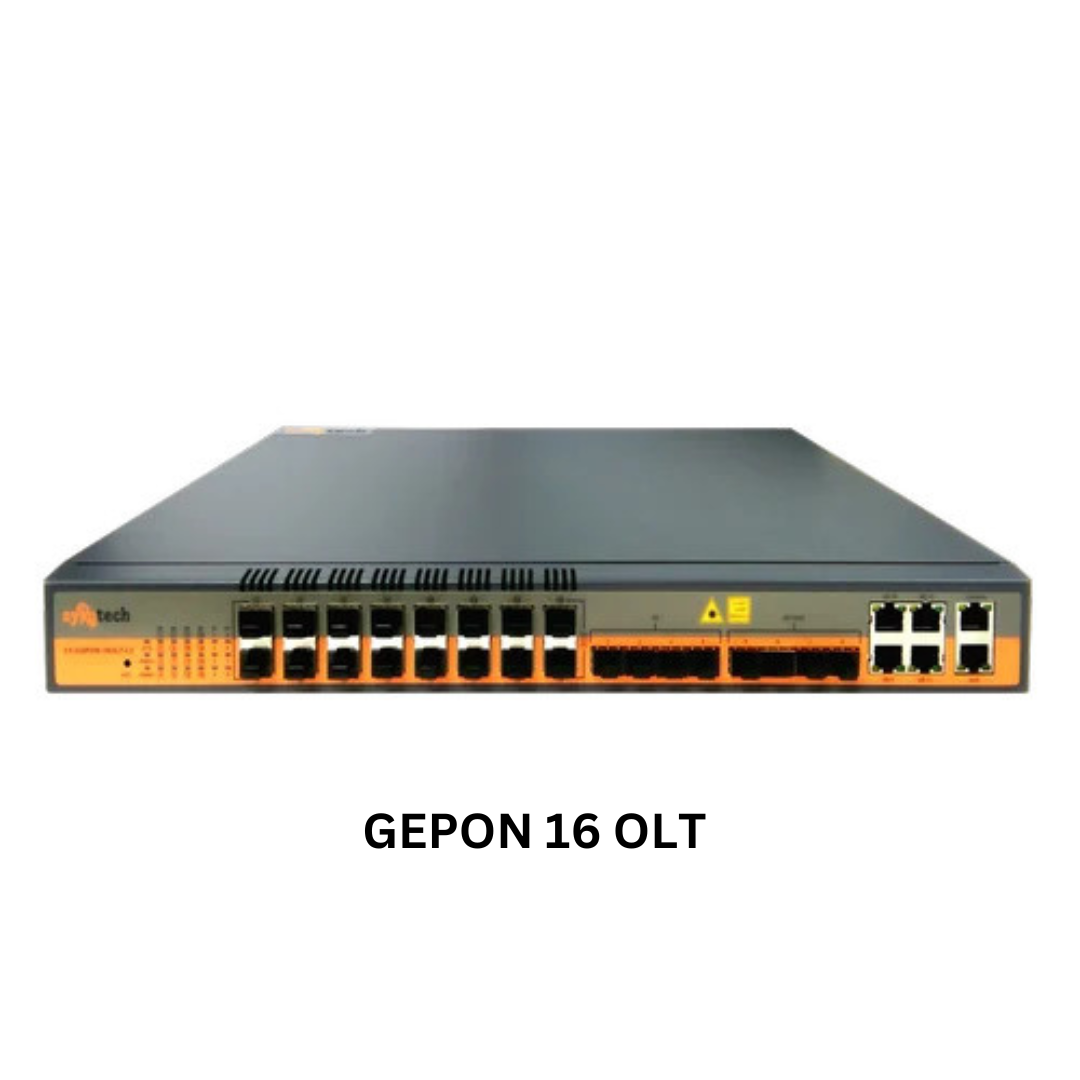

GEPON 16 OLT

1000BASE3 PX20+

Copper SFP Transceiver

20 KM

Symmetrical 1.25Gbps

DESCRIPTION

SPECIFICATION

Rack Unit

1 RU 16-inch standard

Uplink port 1000M

Copper

8 * 10/100/1000 M negotiate

SFP (independent)

8* SFP/ 8 *SFP+

EPON Port

Physical Interface

SFP Slots

Max splitting ratio

1:64

Management Ports

1*10/100BASE-T out-band port, 1*CONSOLE port

PON Port

Connector

SC/PC

Fiber Type

9/125μm SMF

Wavelength

TX 1490nm, RX 1310nm

TX Power

+2~+7dBm

Rx Sensitivity

-27dBm

Mode

Supports SSH, SNMP, CLI, and Telnet

Security

Support t IEEE 802.1x, Radius,Tacacs and ACL

Function

Management

• Monitoring and configuration of port status;
• Support Layer2 switch configuration such as VLAN, Trunk, RSTP, IGMP, QOS, etc;
•  Manage EPON function: DBA,ONU authorization, ACL, QOS, etc;
•  Online control and management of ONUs;
•  User management and alarm management

Layer2 Switch

• Support 4096 VLANs, tag & untag and transparent transmission
• Support for IEEE802.3d trunks with QinQ;
•  Support Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP);
• Quality-of-service based on ports, video IDs, TOS, and MAC addresses;
•  Flow control based on IEEE802.x and access control lists;
• Support loopback, Mac flapping, and P2P functions for port stability.
• Supports both static and dynamic LACP.

IPV6

• Support DN, Ping, Telnet, SNMP, HTTP
•  Support ACL based on source IPv6 address, destination address, L4 port, protocol type, etc.
• Support Multicast Listener Discovery  v1/v2 snooping
•  Support DHCPv6 Server, Relay and  snooping.
•  Support IPv6 static routes, SLAAC, SLAAC snooping, and IPv6 neighbor discovery

Multicast Performs

Snooping of 256 IP addresses using IGMP

L3 Routes

Dynamic routes: RIP v1/v2, OSPF v2; 1024 hardware host routes; 512 hardware subnet routes

EPON

• Port-based rate limitation and bandwidth control;
• Complies with IEEE802.3ah standards;
• Transmission distance up to 20KM;
• Data Encryption, port VLANs, multicast, and port separation supported;
• Support DBA (Dynamic Bandwidth Allocation);
• Support autodiscovery, link detection, and remote software upgrades for ONUs;
• Support VLAN division and user separation to prevent broadcast storms;
•  Supports type B PON protection

Auxiliary Functions

• Various LLID  and single-LLID configuration are supported;
•  Different LLID channels could provide different QoS to different users and services;
•  Support power-off alarms, easy to identify link problems;
•  Provide storm resistance for broadcasting;
•  Support port isolation among different ports;
•  Provides ACL and SNMP support for flexible configuration of data packet filters;
• Dynamic distance calculation on EMS online;
• Provide RSTP and IGMP proxy support.

Power

Supply

AC 220V: 90~264V, 47/63Hz

Consumption

30 W

Operating Environment

Working Temp

-10~+55°C

Storage Temp

-40~+85°C

Physical dimensions (L*W*H)

442mm*200mm*43.6mm

Weight

4.2kg

Name

ON

BLINK

OFF

PWR

Is powered up

-

Is powered down

SYS

Device Started

Running normal

Running abnormal

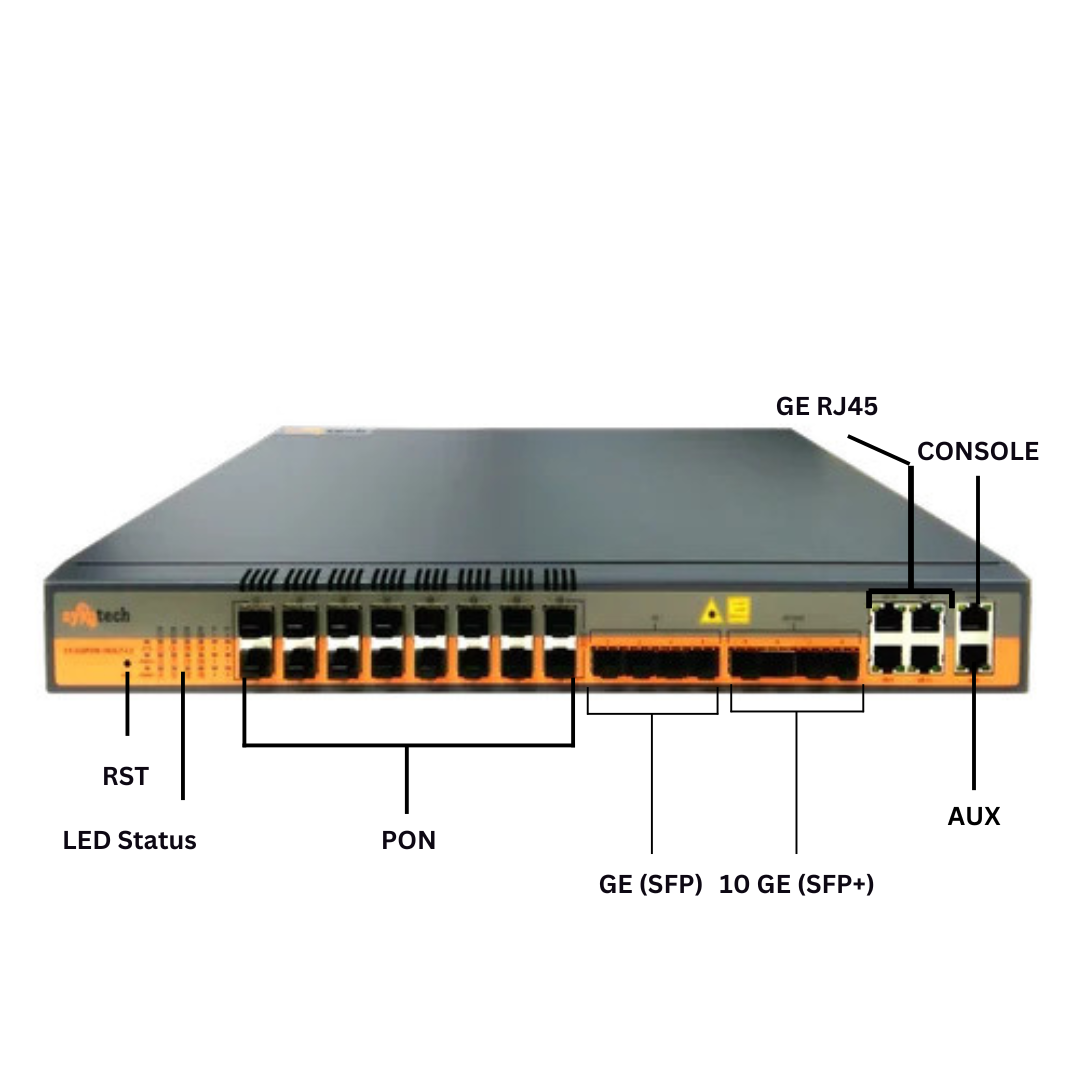

PON1～ PON16

ONT-registered with PON

ONT - registering with PON

No PON registration or ONT not connect to OLT

SFP/SFP+

-

Sending/receiving data

-

Ethernet (yellow-- Link)

Device connected to port

-

Device not connected to port
