VSOL HG5051 AX18 4G Wi-Fi 6 ONT Dual Band Router OFDMA MU MIMO 1800 Mbps 2.4 GHz & 5GHz WPA3 5dBi antenna IEEE 802.11ax Layer 3 Function

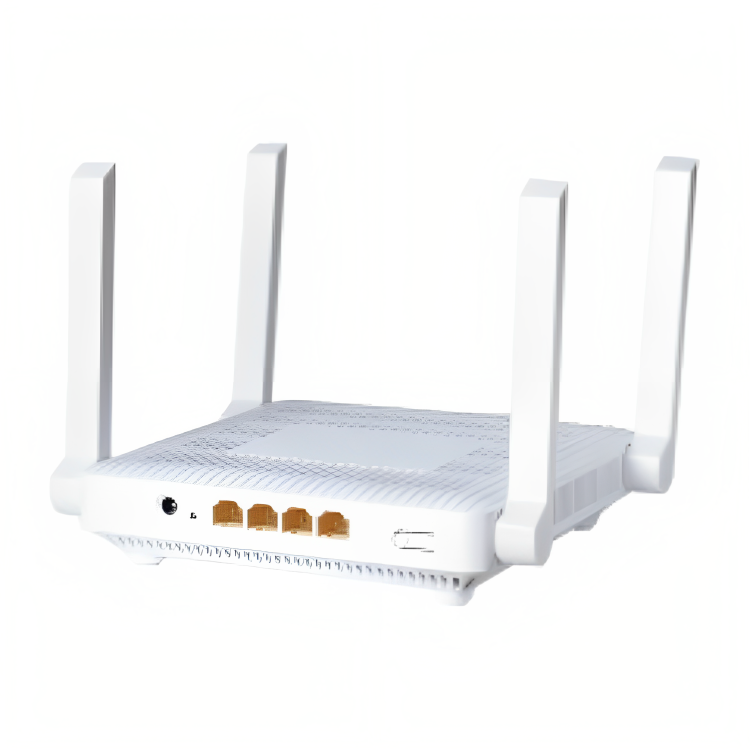

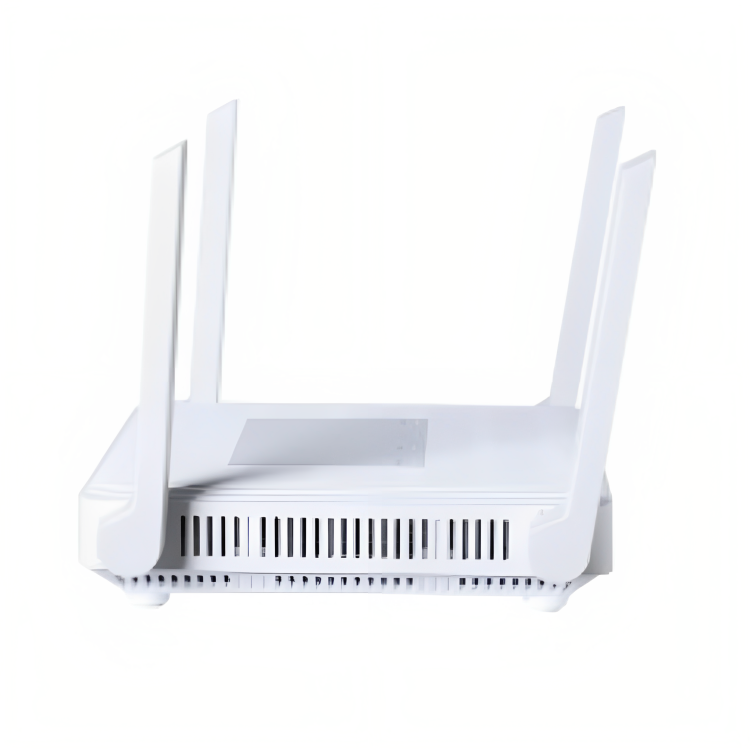

VSOL HG5051-AX18-4G is a Gigabit Wi-Fi 6 router specifically designed for home users. It is equipped with 4 external 5dBi high-gain antennas, allowing multiple devices to connect to the router at the same time with lower latency. It supports OFDMA+MU-MIMO technology, boasting a wireless rate of up to 1800Mbps (2.4GHz: 573.5Mbps, 5GHz: 1201Mbps). Furthermore, it also supports a WIFI MESH network, enabling users to create a wide area of wireless coverage.

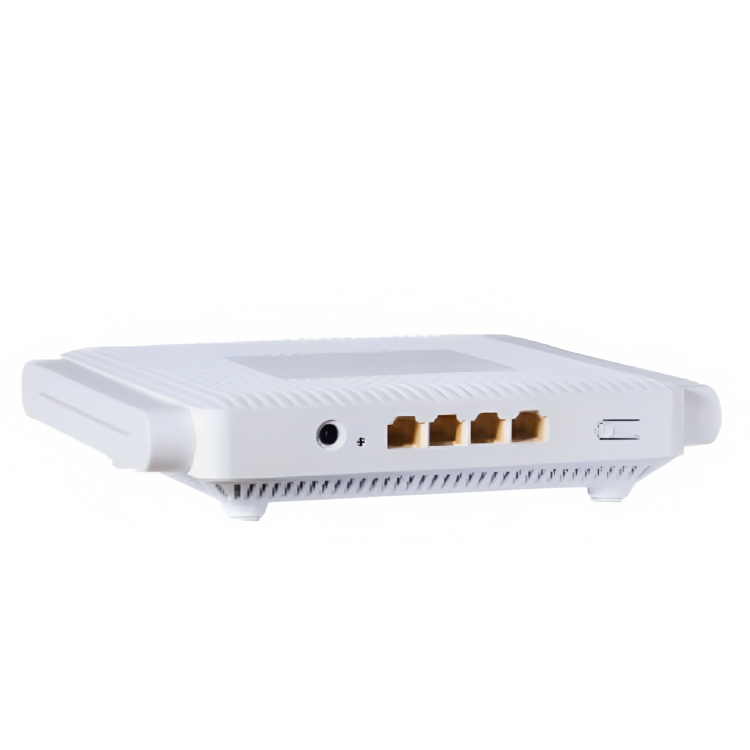

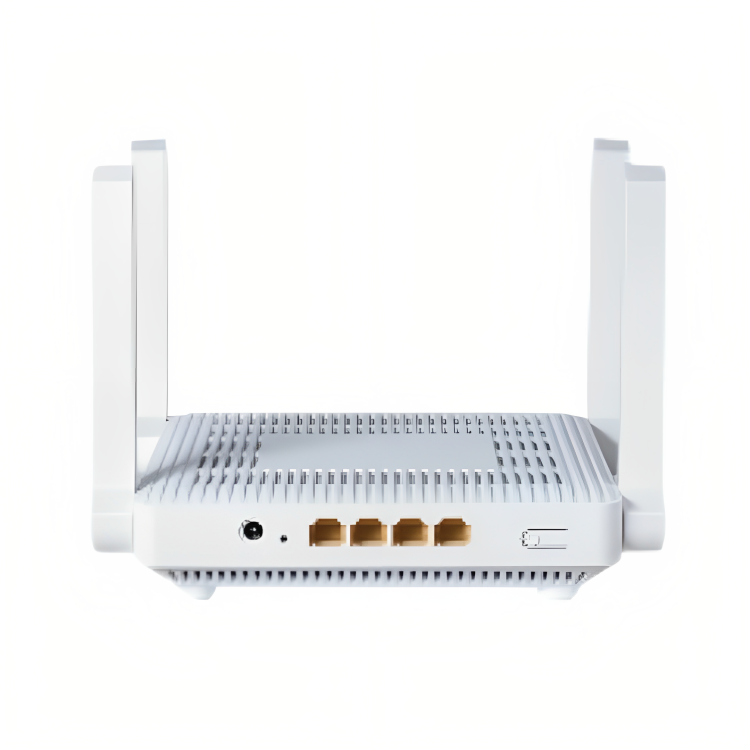

It is also equipped with WPA3 WIFI encryption to ensure secure online data. Additionally, this router has 4 Gigabit Ethernet ports, which can be connected to multiple Internet devices (such as computers, NAS, etc.) via network cables for smooth operation and ultra-high-speed Internet.

KEY FEATURES:-

• Next-Gen Gigabit WiFi6 2.4GHz & 5GHz Dual Band Speed up to 1.8Gbps
• Integrated with WPA3 encryption
• Connect More Devices OFDMA + MU-MIMO
• 4*5dBi Antennas and Mesh Networking, Wide Coverage

WIFI6 Router Feature table

This Wifi router is enclosed with Wi-Fi6 IEEE 802.11ax standard. This standard improves user network efficiency and combines dual-band concurrent operation at 2.4 GHz and 5.8 GHz throughput of 1.8 Gbps i.e 2.4GHz: 573.5Mbps, 5GHz: 1201Mbps.

Through this OFDMA technology,Improves the spectrum utilization and increase the concurrent user level by 4 times. It also provide microsecond low latency network as low as 20 ms without any logging.

These routers will support mesh networks with high-speed network coverage especially in the large-scale area.

WPA3 security made this router more secure because it was the latest version WPAs security. This security function will replace the PSK (Pre-shared key ) with a simultaneously authentication-equal method to prevent from hackers.

SOFTWARE INFORMATION

This ONT supports a few software functions such as DHCP,IP protocols, HTTP/HTTPS, and NAT.

DHCP:-

By enabling this feature on the router, you can manually configure IP addresses on your network. Usually, it will assign an IP address automatically and set the default gateway to devices.

IP PROTOCOLS:

Internet Protocol (IP) is an essential communication protocol within the Internet Protocol Suite (IPS). It facilitates the routing and addressing of packets between different networking devices. Through this, we can solve the limitation of the network and also resolves barrier for multiple access devices that are connected to the network.

HTTP /HTTPS:-

Through this feature, we can browse the web safe and secure. Through this, we can  block the web that is not to be browse. Usually, this can be used in many IT resources to prevent data from those unsecured webs.

SECURITY :

When comes to security this router support NAT.NAT was the solution for IPV4 because it will support limited IP address to overcome those limitation NAT (Network Address Translation ) supported. This can change one or more local private IP addresses into a global public IP address. It also has a firewall to protect the data on your local devices. That is a NAT firewall. NAT firewalls will convert the private IP address into the public IP address when the data packet travels outside the Internal network. It also works in the opposite way to prevent malicious data from coming in. It will block out any unauthorized connections from outside from accessing the local network.

NETWORKING DIAGRAM:-

Queries about COST:

When compared to other ONT Brands, VSOL ONT have high performance with a highly configurable chipset. Also, it is cost-efficient and easy to manage.

ORDERING INFO:

NOTE:- For more information about switches & other accessories, visit blog pages  or make contact with the technical support team
