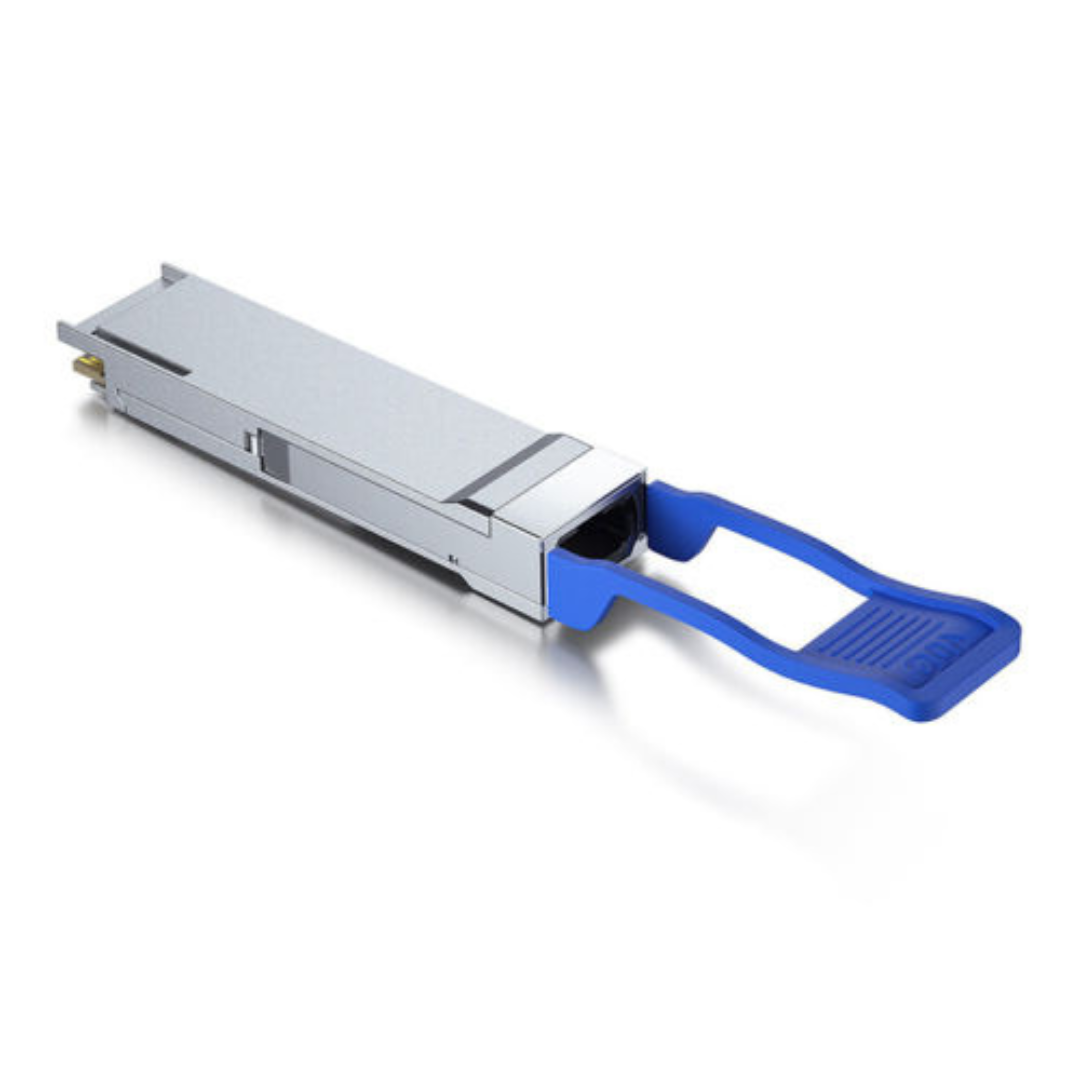

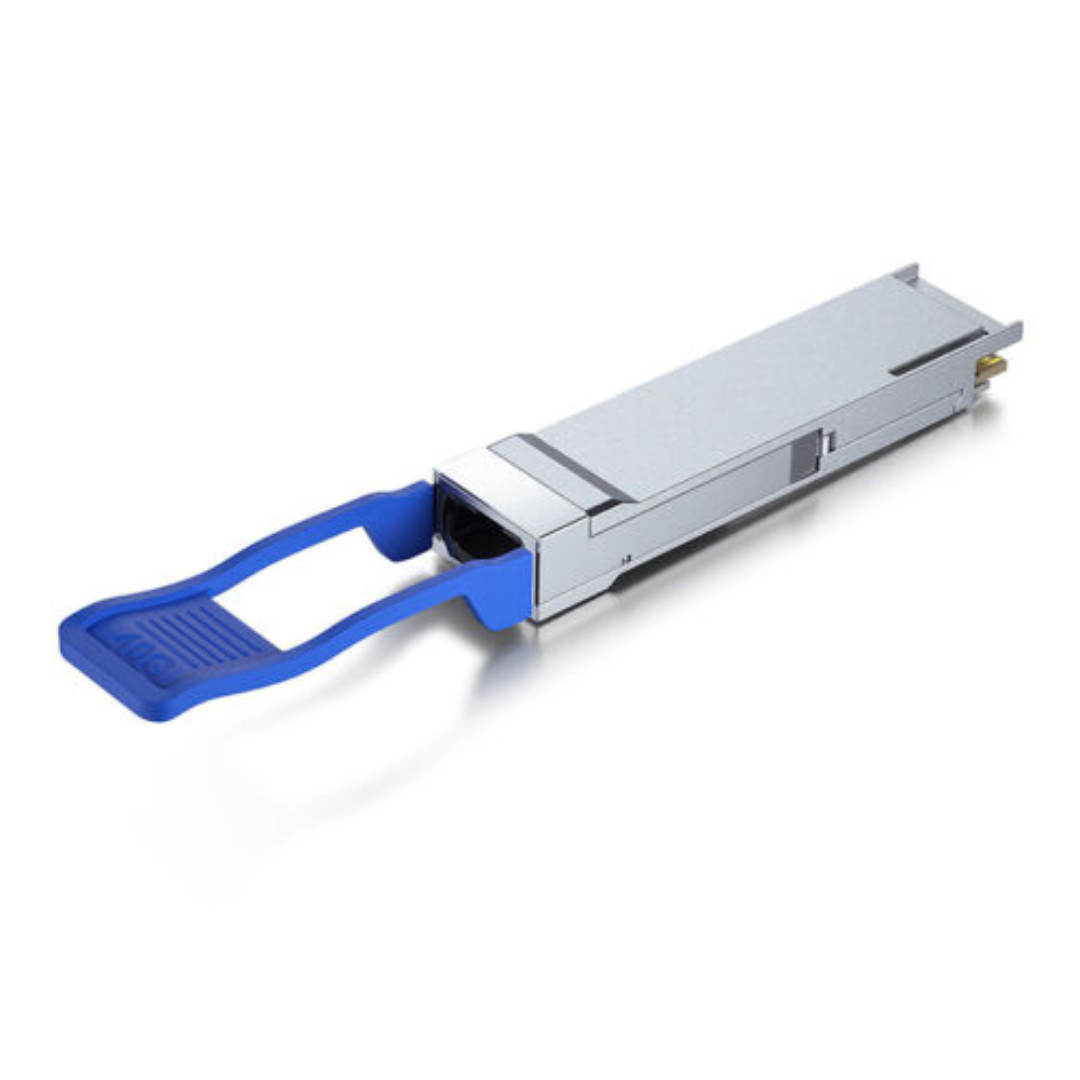

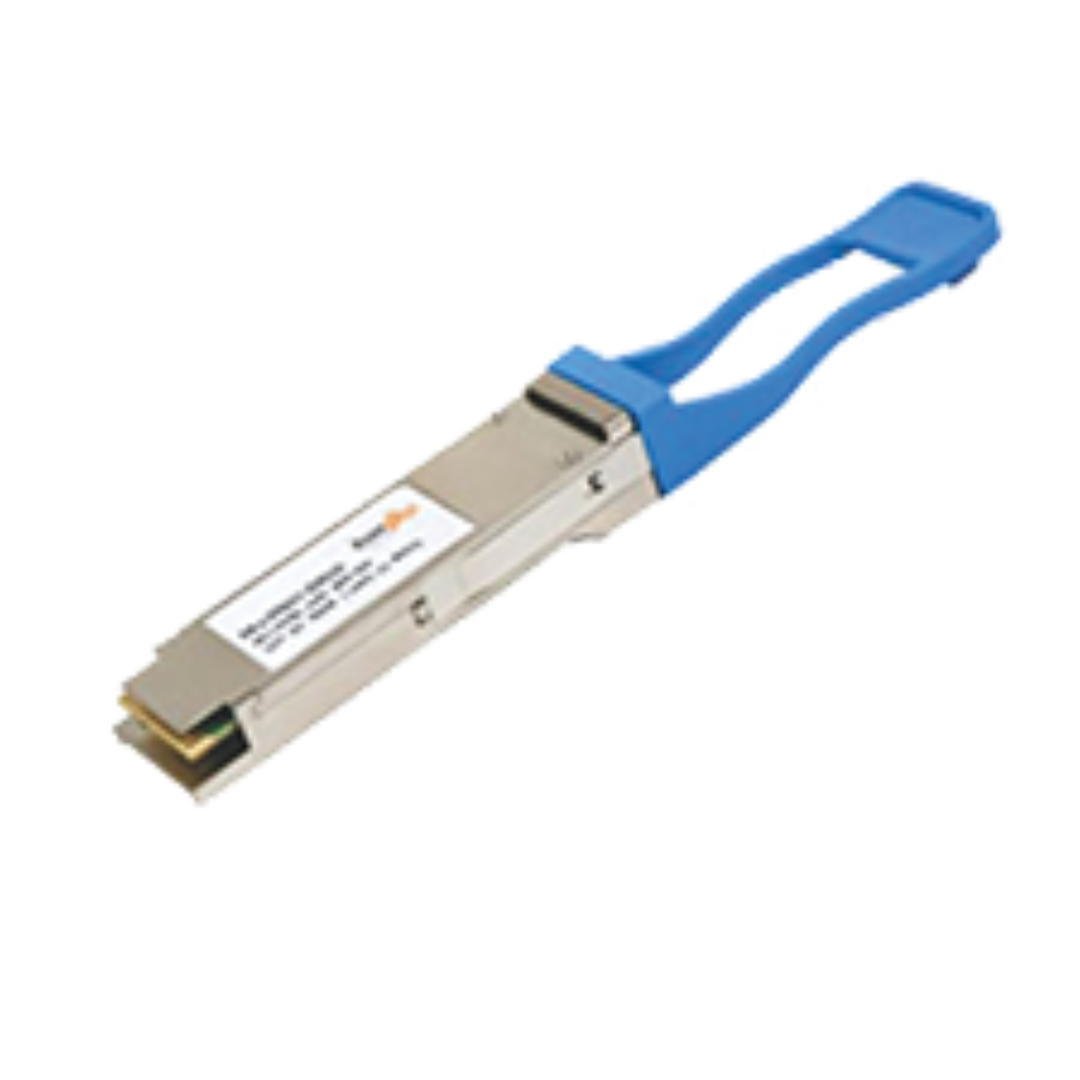

Syrotech-40g qsfp+-LR4-Transreceiver Module-IEEE 802.3 ba-MPO-PSM-MSA-MUX-DEMUX-10 Km

This QSFP+ transceiver supports 40GBase-LR4 over SMF via an MPO connector using a wavelength of 1310nm. The device was built in compliance with MSA standards and has been serialized and data traffic and application tested to ensure seamless integration into your network. It is also possible to access real-time operating parameters through digital optical monitoring (DOM).

KEY POINTS:-

➛ 4 CWDM lanes MUX/DEMUX design

➛ Up to 11.2Gbps per channel bandwidth

➛ Aggregate bandwidth of > 40Gbps

➛ Duplex LC connector

➛ Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard

➛ QSFP MSA compliant

➛ Up to 10 km transmission

➛ Compliant with QDR/DDR Infiniband data rates

➛ Single +3.3V power supply operating

➛ Built-in digital diagnostic functions

➛ Temperature range 0°C to 70°C

➛ RoHS Compliant Part

SPECIFICATION:-

TRANSMITTER TABLE

RECEIVER TABLE:-

Utilize for

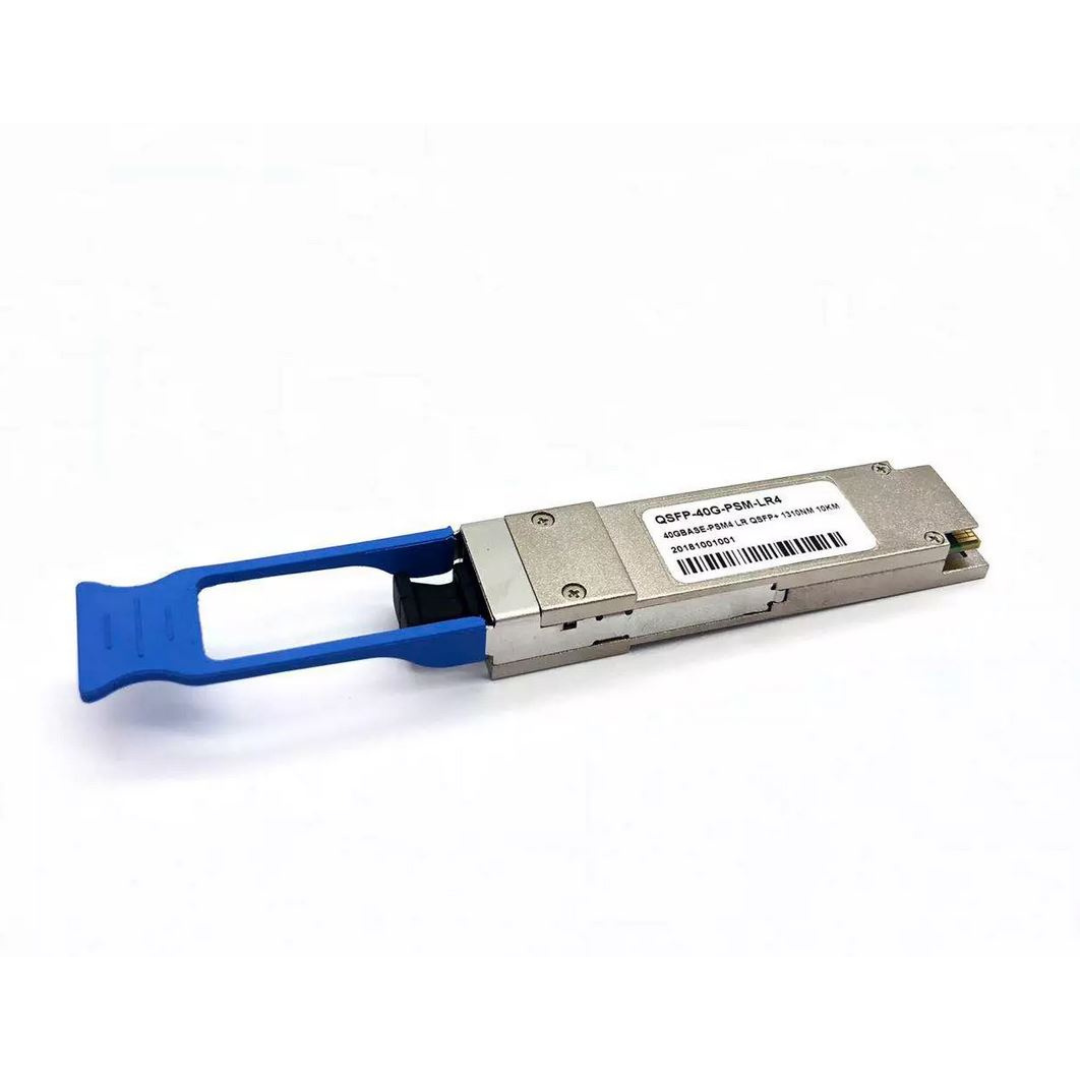

A QSFP-40G-PSM-LR4 optical transceiver for 40 Gigabit Ethernet applications is a 4-lane Parallel Single Mode fiber (QSFP+ PSM). With 4 independent transmit and receive channels, the QSFP+ LR4 full-duplex optical transceiver provides an aggregate data rate of 40Gb/s over 10km of G.652 single-mode fiber. In addition to the 12-fiber MPO (MTP) connector on the optical interface, the QSFP+ PSM LR4 transceiver uses a z-pluggable 38-pin connector that is MSA-compliant. It is possible to connect an optical fiber ribbon cable with an MPO(MTP) connector to the QSFP+ transceiver receptacle. As a result, the system has a higher port density and lower total cost.

Ordering Info:

For More Information:

For more information about switches & other accessories, visit blog pages  or make contact with the technical support team

Warranty Information:-

To Know about warranty, visit https://syrotech.com/warranty-disclaimer/.
