VSOL 10G EPON OLT V3600D8-8 PORT EPON OLT 10G EPON ,2*10GE SFP+ 2* 25GE SFP28 + + 2*100GE QSFP28+100 gbps uplink +1:256 Split ratio + Strong Security +Layer 3

Parameters

Description

Model

V3600D8

Bandwidths

880 Gbps

Port forward Rate

523.776 Mbps

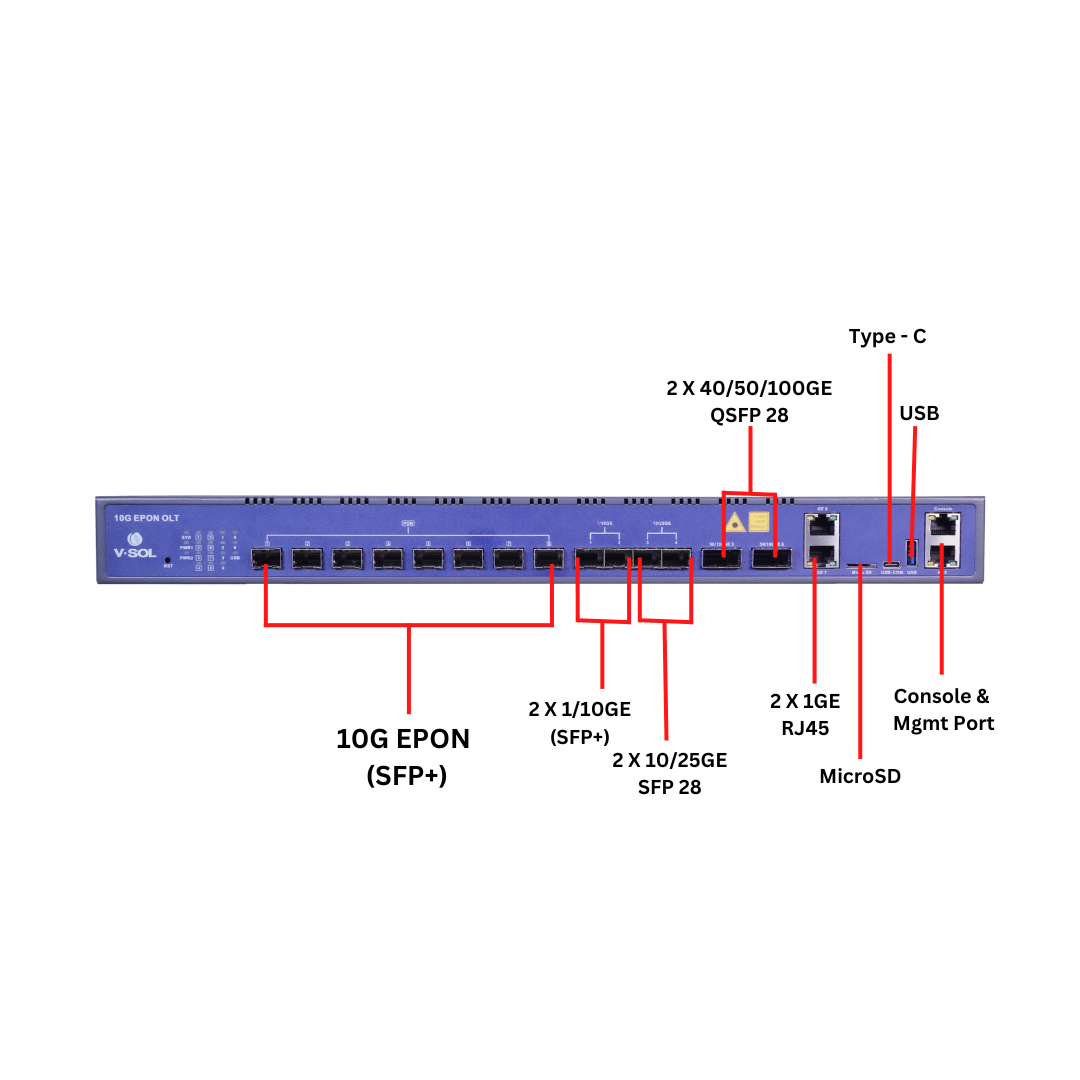

Uplink Port

QTY

6

1/10 GE ( SFP+)

2

10/25 GE (SFP 28)

2

40/50/100GE(QSFP28)

2

10G EPON

QTY

8

Physical interface

SFP+ Slots

Connector

PR30/PRX30

Max splitting ratio

1:256

Power port

QTY

2

Physical Interface

RJ45

Rate

1000M/100M/10M, adaptive

Chassis

1 U 19 inch standard Box

Power Supply

AC 100~240 V, 50/60 Hz, 200W

DC Power

-48 V

Power Consumption

≤145W

Operating Environment

Working

0~+50°C

Storage

-40~+85°C

Humidity

5~90% (non-conditioning)

Dimension ( L x W x H )

442mm*369mm*46.6mm

weight

3.9 kg

Parameters

Description

Management

Ports

1*10/100BASE-T out-band port, 1*CONSOLE port, One Type-C

Mode

SNMP/Telnet/CLI/WEB/SSH v2/EMS

Function

• Fan Group Control;
• Port Status monitoring and configuration management;
• Online ONU configuration and management;
• User management, Alarm management

PON

• Transmission range upto 20 Km
• 10Gbps 1577nm TX
• 10Gbps 1270nm RX
• 1.25Gbps 1490nm TX
• 1.25Gbps 1310nm RX
• Connector: SC/UPC
•  Fiber Type: 9/125μm SMF

Layer 2

• MAC address of 16K
• VLAN support for ports and protocols
•  Support for 4096 VLANs
• VLAN tag/untag, VLAN transparent transmission, QinQ support
• IEEE802.3d trunk support
• Support for RSTP, MSTP, and QoS based on the port, VID, and TOS
• Control of flow in IEEE802.x
• Monitoring and statistics on port stability
• Support P2P Function

Multicast

IGMP snooping and 8K IP MulticastGroups

DHCP

DHCP server , Relay and snooping

Layer 3

• Proxy ARP
• Static route
• Hardware host routes of 4K
• 16K hardware Subnet Routes
• Support RIPv1/v2, OSPFv2 and PPPoE+

EPON

• Port-based rate limitation and bandwidth control are supported
• Compliant with IEEE802.3ah, IEEE802.3av
• Encrypted data, multicast, port VLAN, separation, and RSTP are all supported
• Assist with Dynamic Bandwidth Allocation (DBA)
• Support auto-discovery, link detection, and remote software upgrades
• To avoid broadcast storms, support VLAN division and user separation
•  Support multiple LLID configurations and a single LLID configuration
•  Different LLID channels could provide different QoS to different users and services
• Power-off alarm, easy detection of link problems
• Support for storm resistance broadcasting
• Port isolation between different ports is supported
•  ACL support for flexible configuration of data packet filters
•  System breakdown prevention to maintain stability
• Support Dynamic distance calculation in EMS online

Security

• IEEE802.1x, Radius, Tacacs+ are supported
• IP Source Guard, DHCP Snooping, and DHCP Option82 supported
•  HTTPS and SSHv2 are supported

IPv6

• Snooping of SLAAC and neighbor discovery in IPv6
• Server, relay, and snooping support for DHCPv6
• Support IPV6 Static Route and  Dynamic Route Protocol: RIPng, OSPF v3
•  MLD V1/V2 support
•  Support IPv6 ACL, SNMP, Telnet, HTTP, SSH management

Model

Description

Power

Accessories

V3600D8

8*10G EPON,2*GE(RJ45)+ 2*10GE(SFP+)+2*25GE(SFP28) +2*100GE(QSFP28)

1*AC power; 2*AC power; 1*DC power; 2* DC power; 1*AC power + 1* DC power.

10G EPON SFP+ PR30 module, 10G EPON SFP+ PRX30 module,100GE QSFP28 module, 25GE SFP28 module ,10GE SFP+ module
