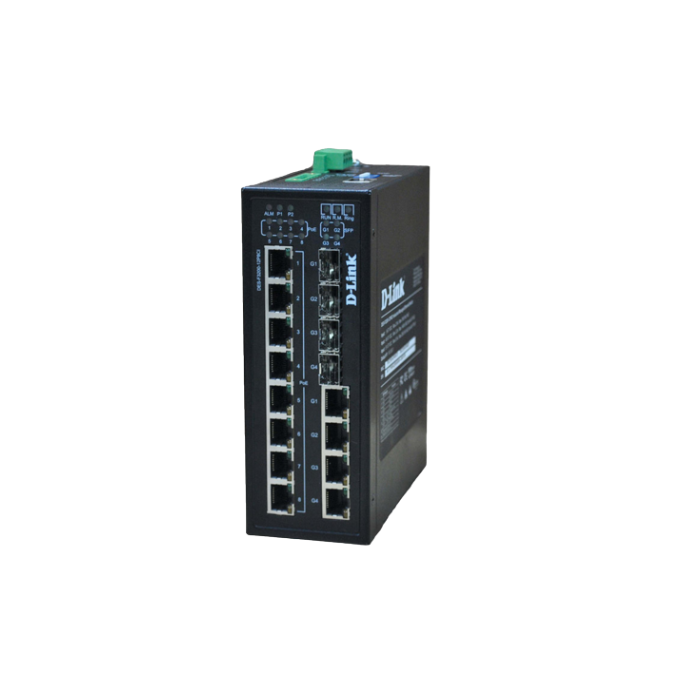

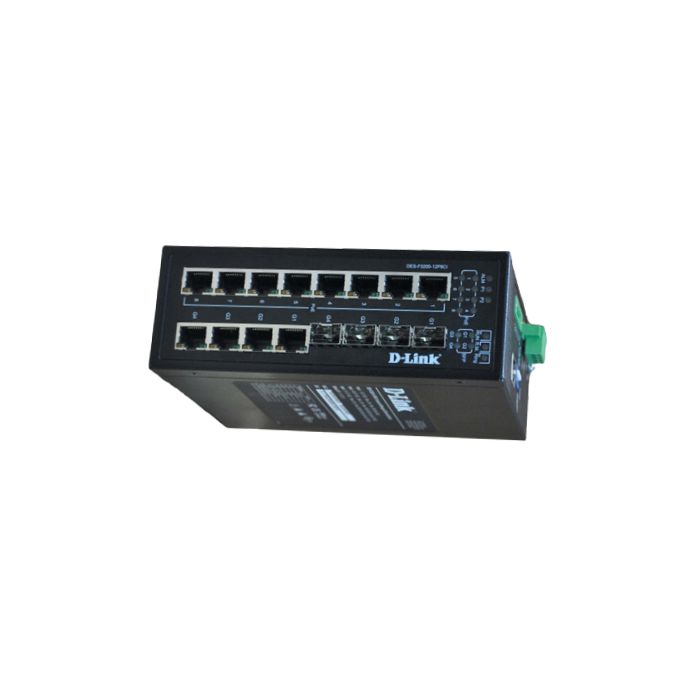

D Link-DES F3200 06PI & 08PI Industrial Managed Switch,4 /4 x 10/100 Base- T PoE and 2/4 x 100/1000 Base X SFP combo,Layer 2 & 3 ACL

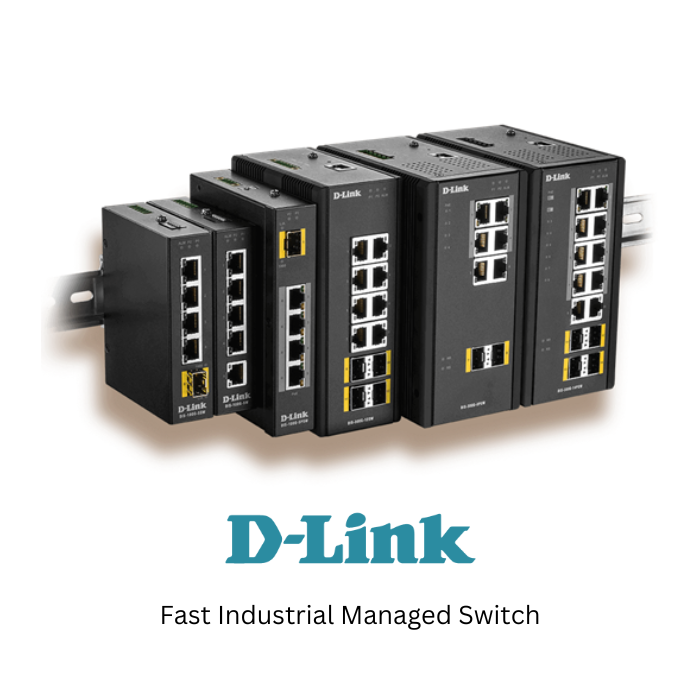

D Link DES-F3200 Series Layer 2 Fast Ethernet Industrial Managed Switches are equipped with 4/8/12/16 10/100 BASE-TX ports with or without PoE & up to 4 SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environment. The DES-F3200 Series furthermore integrates advanced management and security functions to provide a complete solution.

KEY FEATURES

DES-F3200-06PI

• 4 10/100 Base-Tx PoE / PoE+ Ports & 2 100/1000 Base-X SFP
• Ethernet Ring Protection Switching (ERPS)
• IEEE 802.1Q and port-based VLAN
• IEEE 802.1p Quality of Service (QoS)
• Bandwidth control and  Broadcast storm control
• PoE budget is up to 30W per port (only for PoE models)
• Shock, Vibration & Freefall test approvals
• Dual Redundant DC power inputs
• Enclosure with IP-30 certification

DES- F3200- 08PI

• 4 10/100 Base-Tx Ports PoE / PoE+ & 4 10/100/1000 Base-T or 100/1000 Base-X SFP COMBO Ports
• Ethernet Ring Protection Switching (ERPS)
• IEEE 802.1Q and port-based VLAN
• IEEE 802.1p Quality of Service (QoS)
• Bandwidth control and  Broadcast storm control
• PoE budget is up to 30W per port (only for PoE models)
• Shock, Vibration & Freefall test approvals
• Dual Redundant DC power inputs
• Enclosure with IP-30 certification

TECHNICAL SPECIFICATION

• These industrial-managed POE switches from D Link provide seamless network connectivity for surveillance, automation, and monitoring applications. It is specially designed to withstand harsh environmental conditions, such as extreme temperatures, humidity, and dust. With its rugged metal chassis, it ensures long-term durability and reliable performance in tough industrial environments.

• DES F3200 is equipped with advanced features such as IGMP, static mac, flow control, port mirroring, and link aggregation. A static mac allows administrators to limit network access to authorized devices. Upon exceeding a defined threshold, Storm Control starts blocking or discarding broadcast, multicast, or unknown unicast traffic that could flood the network.

• Integrated looping detection and cable diagnostic will helps administrators to find and solve network problems. Loop detection helps to identify loops created by a specific port and automatically shut down those ports. Electromagnetic compatibility (EMC) from this will protect from the working environment of strong electromagnetic interfaces. with this IP 30 housing, it can transmit data from -40° to 75°C temperature.

SOFTWARE FEATURES

When comes to pricing, these industrial switches are expensive when comes to unmanaged switches. These Switches are ideal for the energy industry, transportation, electricity substation, and smart city surveillance.
